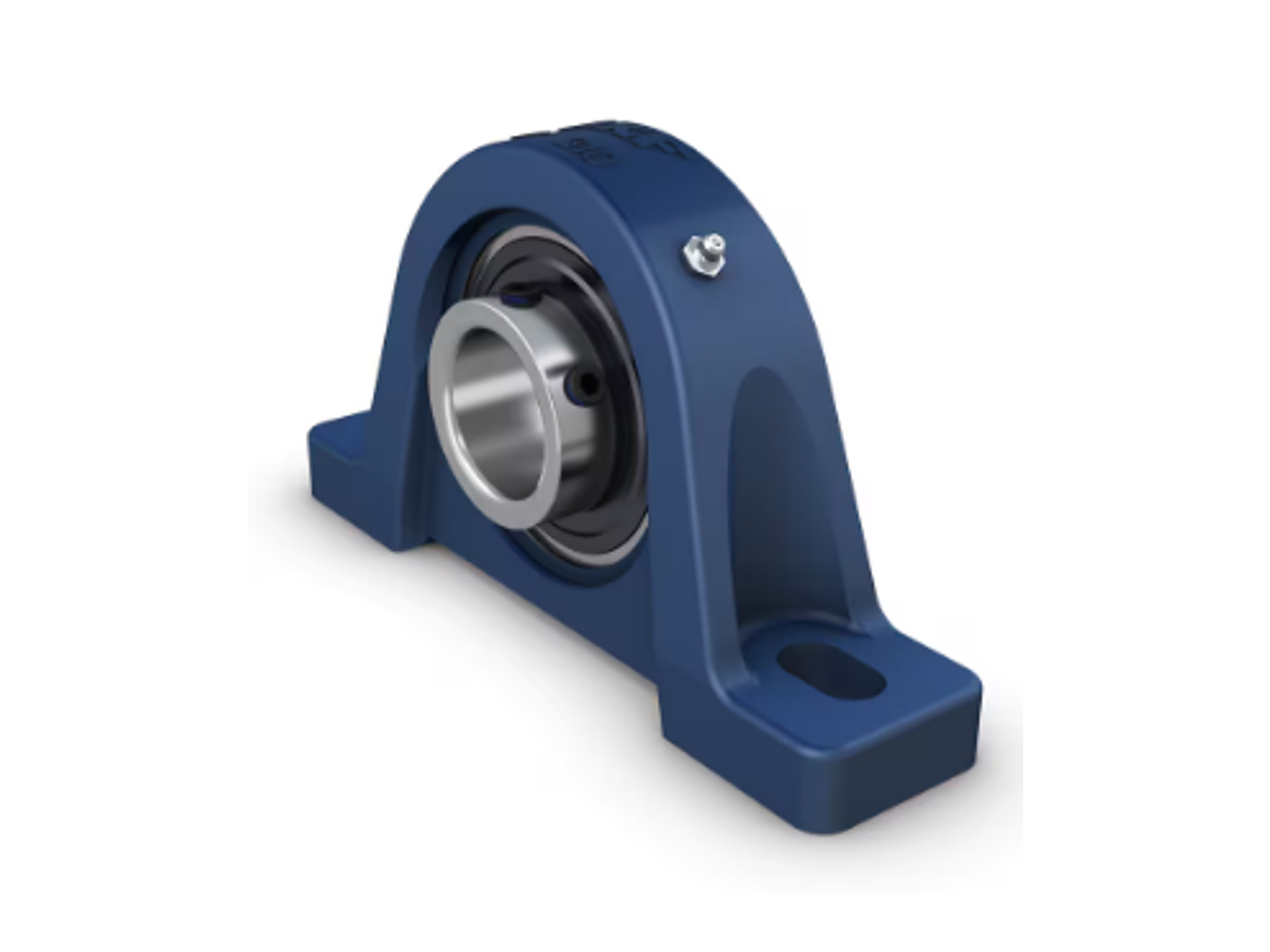

UCP 205 SKF Lejehus kpl.
Varenummer: 6105-0300
.
DKK 359,09 / stk
DKK 448,86 inkl. moms
  •
Ståleje for 25mm aksel


Mere information

Information & specifikationer

  • H1
    16 mm
    Foot heightH2
    70.5 mm
    Overall heightJ
    105 mm
    Distance between attachment boltsJ
    max.110 mm
    Distance between attachment boltsJ
    min.100 mm
    Distance between attachment boltsL
    139.5 mm
    Overall lengthN
    13 mm
    Diameter of attachment bolt holeN1
    18 mm
    Length of attachment bolt holes1
    19.8 mm
    Distance from locking device side face to raceway centre
    THREADED HOLE
    RG
    1/4-28 UNF
    		Housing thread for the grease fitting
    R1
    1.5 mm
    		Axial position of the housing thread
    Rα
    45 °
    		Angular position of the housing thread
    GREASE FITTING
    DN
    6.6 mm
    		Diameter of head sphere of grease fitting
    SWN
    7.94 mm
    		Hexagonal key size for the grease fitting
    GN
    1/4-28 UNF
    		Thread of the grease fitting

CALCULATION DATA

Basic dynamic load ratingC
14 kN
Basic static load ratingC0
7.8 kN
Fatigue load limitPu
0.335 kN
Limiting speed
5 850 r/min
with shaft tolerance h6

MASS

Mass bearing unit
0.76 kg

MOUNTING INFORMATION

Set screwG2
M6x0.75
Hexagonal key size for set screw
3 mm
Recommended tightening torque for set screw
4 N·m
Recommended diameter for attachment bolts, mmG
10 mm
Recommended diameter for attachment bolts, inchG
0.375 in

Dimensions - UCP 205/H

DIMENSIONS

d
25 mm
Bore diameter
d1
≈33.74 mm
Shoulder diameter inner ring
A
38 mm
Base width
A1
23 mm
Top width
B
34.1 mm
Width inner ring
B4
5 mm
Distance from locking device side face to thread centre
H
36.5 mm
Height of spherical seat centre
Type UCP 205
Bredde [mm] 37,80
Indvendig diameter [mm] 25,00
Udvendig diameter [mm] 140,00
Alternativ TIMKEN UCP 205
Alternativ SKF SY 25 TF
Betegnelse UCP 205
Bolteafstand [mm] 105mm J mål
Hustype P 205
Lejetype UC 205
Materiale_lejehus Støbejern
EAN-varenummer 7316579751827
UNSPSC 31171504
  • Type UCP 205
    Bredde [mm] 37,80
    Indvendig diameter [mm] 25,00
    Udvendig diameter [mm] 140,00
    Alternativ TIMKEN UCP 205
    Alternativ SKF SY 25 TF
    Betegnelse UCP 205
    Bolteafstand [mm] 105mm J mål
    Hustype P 205
    Lejetype UC 205
    Materiale_lejehus Støbejern
    EAN-varenummer 7316579751827
    UNSPSC 31171504
