COMMANDER 150° - 1SN PLUS - 2" - 40
1004664
SAE 100 R1AT - ISO 1436-1 - UNI EN 853 1SN

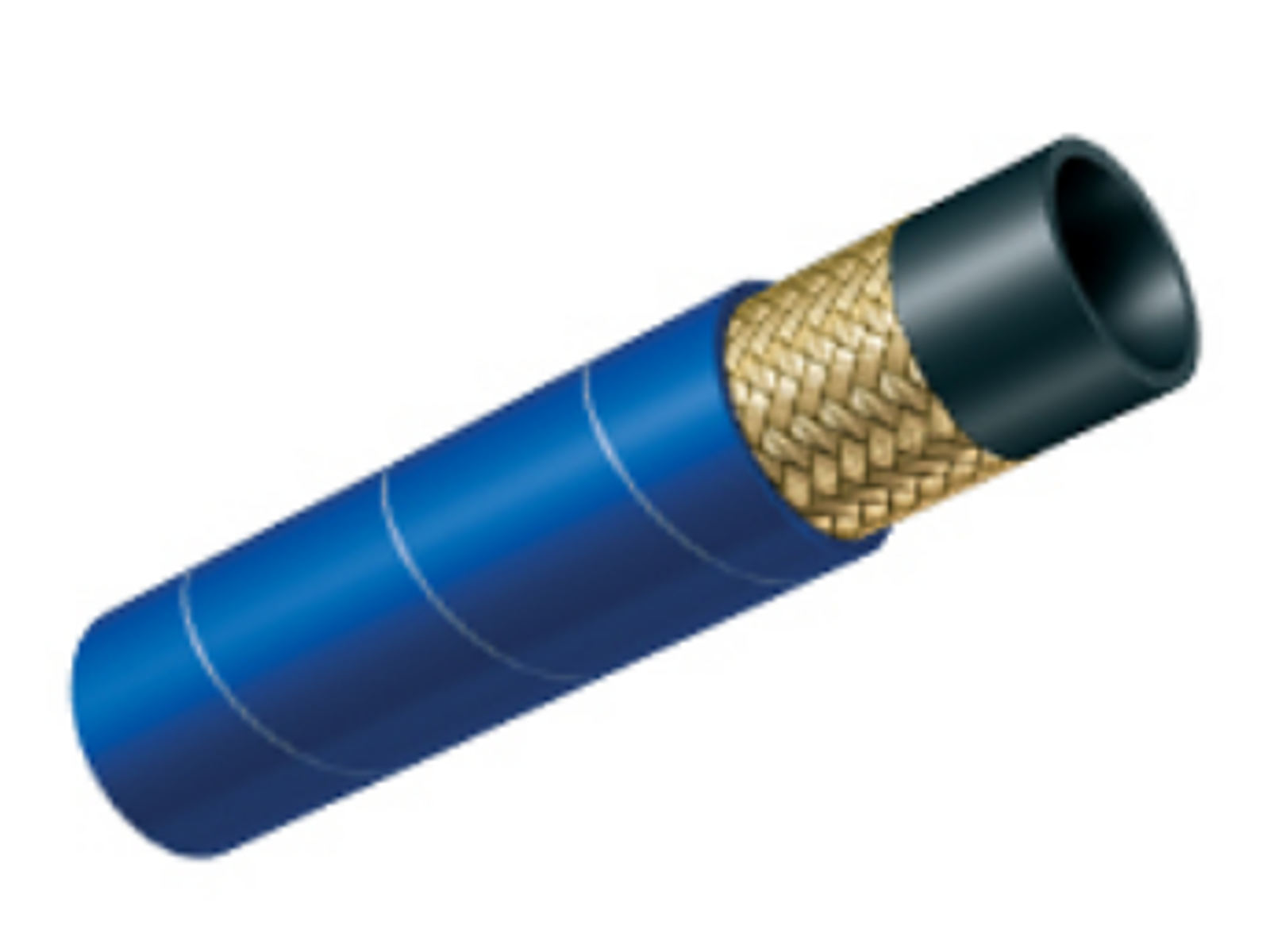

Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: smooth up to 1", wrapped over 1". Blue abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Specially designed for high temperature applications. Not recommended for steam service.
Temperature: -40 °C +150 °C (-40 °F +300 °F)
air max T up to 5/8" = +85 °C (+185 °F)
air max T over 3/4" = +110 °C (+230 °F)
Length: random up to 5/8" - 61 m max over 3/4"
DH SCAN crimp short code: 150PLUS-1SN
ID (Dash): 32
ID (mm): 51
ID (in): 2"
OD (mm): 62,4
WP (Bar): 40
WP (psi): 600
BP (Bar): 160
BP (psi): 2320
BR (mm): 630
Weight (kg/m): 1,911
